Seaport steel structure fabrication in India — port, jetty and marine infrastructure steelwork

Seaport steel structure fabrication in India is a demanding specialisation. Marine and port environments are among the most aggressive corrosion environments for structural steel — the combination of salt spray, humidity, tidal wetting and drying, and biological fouling can destroy inadequately protected steel in a few years. At the same time, the structural loads in port structures — ship berthing loads, crane wheel loads on quayside gantry rails, bulk material handling loads — are heavy and dynamic. Getting the structural design, the fabrication quality, and the surface protection right is not optional in seaport structural steel work. Suncorporation has supplied structural steel for port and marine projects at Indian ports on both the eastern and western coasts.

Types of seaport steel structure fabrication

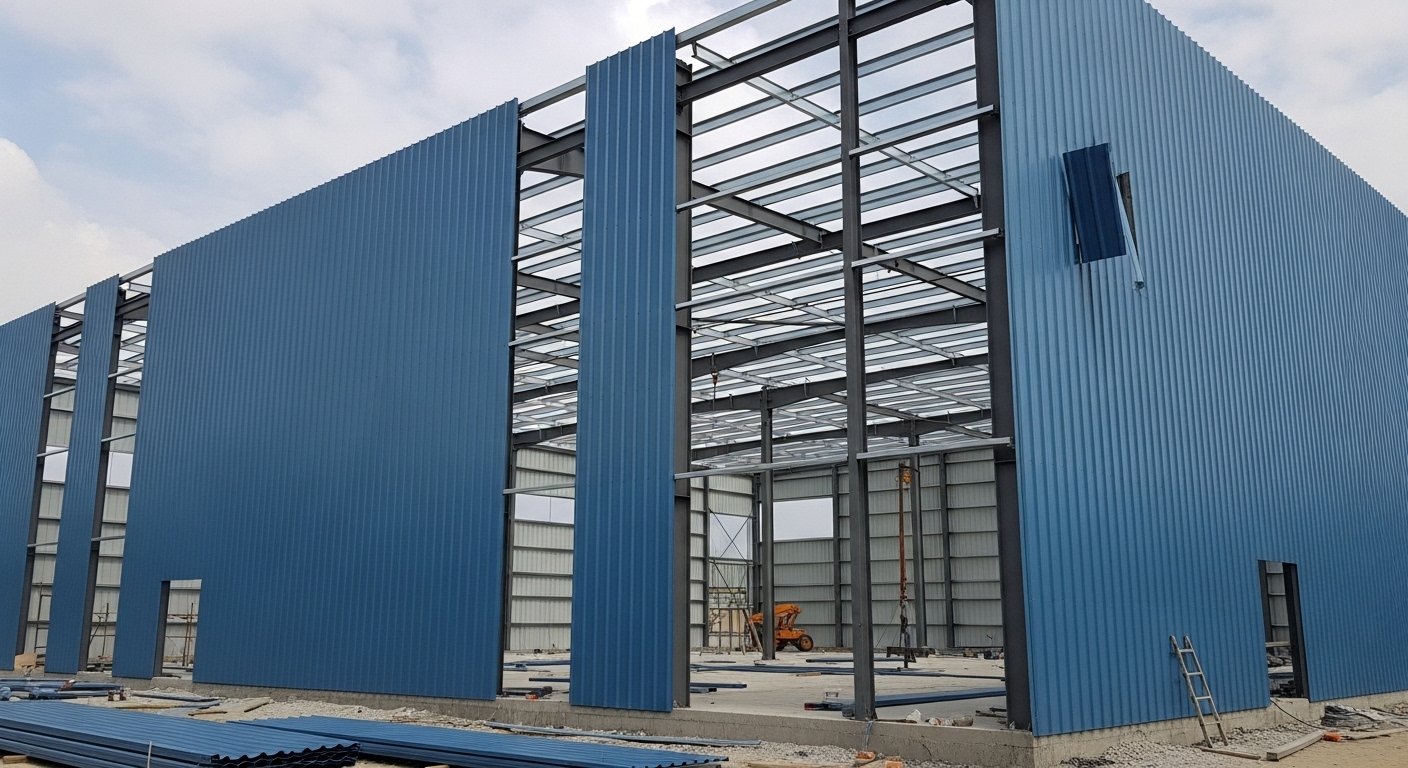

Port building and warehouse steel frames

Every major Indian port has a substantial inventory of operational buildings — cargo handling sheds, container freight stations, customs examination bays, transit warehouses, maintenance workshops, and administrative buildings. Most of these are steel-framed structures, either conventional portal frames or PEB systems. Seaport steel structure fabrication for port buildings follows the same IS 800:2007 requirements as any industrial building, but the corrosion protection specification is significantly more demanding than for an inland industrial site. IS 9954 hot-dip galvanising and high-performance epoxy and polyurethane coating systems are used for seaport building steelwork. Structures within 300 metres of the high-tide line are in very aggressive atmospheric exposure zones and require either hot-dip galvanising or a three-coat paint system with minimum 300 microns dry film thickness.

Conveyor and material handling support structures

Bulk cargo ports — coal, iron ore, fertiliser, grain, cement — use extensive conveyor and material handling systems requiring substantial structural steel support. Conveyor trestle frames carry the conveyor over distances of hundreds of metres at heights of 5 to 25 metres. Transfer tower structures support conveyors at direction changes and elevation transitions. Seaport steel structure fabrication for conveyor frames combines the structural requirements of conveyor steel — vibration from drives, dynamic loads at material impact transfer points — with the corrosion protection requirements of the marine environment. All structural steel for port conveyor frames from Suncorporation is hot-dip galvanised as standard, with additional paint top coat for very aggressive marine exposure zones.

Corrosion protection for seaport steel structure fabrication in India

The single biggest technical challenge in seaport steel structure fabrication is corrosion. India’s coastline — Arabian Sea coast, Bay of Bengal coast, and Gulf of Mannar — presents a range of marine atmospheric conditions, but all of them are significantly more corrosive than any inland industrial environment. The correct corrosion protection strategy depends on the exposure zone and required service life:

• Hot-dip galvanising to IS 9954 — 85 microns minimum average zinc coating, providing 20 to 30 years of maintenance-free protection in C4 (high) marine atmospheric exposure. Appropriate for secondary and tertiary structural steel in the port estate, away from direct water contact.
• Three-coat epoxy system — zinc-rich epoxy primer on shot-blasted surface (Sa 2.5), epoxy mid-coat, and polyurethane finish coat. Total minimum DFT 300 microns. Appropriate for primary structural steel in the port atmospheric zone where hot-dip galvanising is not feasible due to section size or geometry.
• Duplex system — galvanising plus paint top coat. The combination provides significantly longer protection life than either system alone, typically specified for elements in C5 marine atmospheric exposure where a 25-year maintenance-free design life is required.

IS and IRC standards for seaport steel structure fabrication

• IS 800:2007 — primary structural steel design and fabrication code for all port building and superstructure steel.
• IS 875 Parts 1 to 3 — dead, imposed, and wind loads. Wind loading is particularly important for tall port structures in coastal exposure categories.
• IS 4651 Part IV — structural design of port and harbour structures including material specifications and loading requirements.
• IS 1893:2016 — seismic design. Indian ports on the west coast and in the Andaman and Nicobar Islands are in high seismic zones.
• IS 9954 — hot-dip galvanising specification for structural steel.
• ISO 12944 — classification of environments and paint systems for corrosion protection in C5/CX marine exposure categories.

Seaport steel structure fabrication cost in India — 2026

Seaport steel structure fabrication costs more than equivalent inland structural steel because of the more demanding corrosion protection specification. Hot-dip galvanising adds Rs 12,000 to Rs 18,000 per MT over base fabrication cost. Three-coat epoxy paint systems add Rs 8,000 to Rs 15,000 per MT. Base fabrication rates are Rs 80,000 to Rs 1,10,000 per MT for standard structural steel elements, with corrosion protection premium added on top. Total delivered cost for galvanised port structural steel typically runs Rs 95,000 to Rs 1,30,000 per MT depending on section sizes, connection complexity, and the specific corrosion protection system. Transport to coastal port sites from Hyderabad adds Rs 2,500 to Rs 5,000 per MT.

Seaport steel structure fabrication enquiries

To get a quotation for seaport steel structure fabrication, we need the structural drawings, the material specification, the corrosion protection specification (including ISO 12944 or IS 9954 reference), and the site location. If the corrosion protection specification is not yet defined, we can advise on appropriate systems based on the exposure zone and required service life. We respond to all seaport steel structure fabrication enquiries within 24 hours.
